Vaisala ANP115 Analogue Input Probe

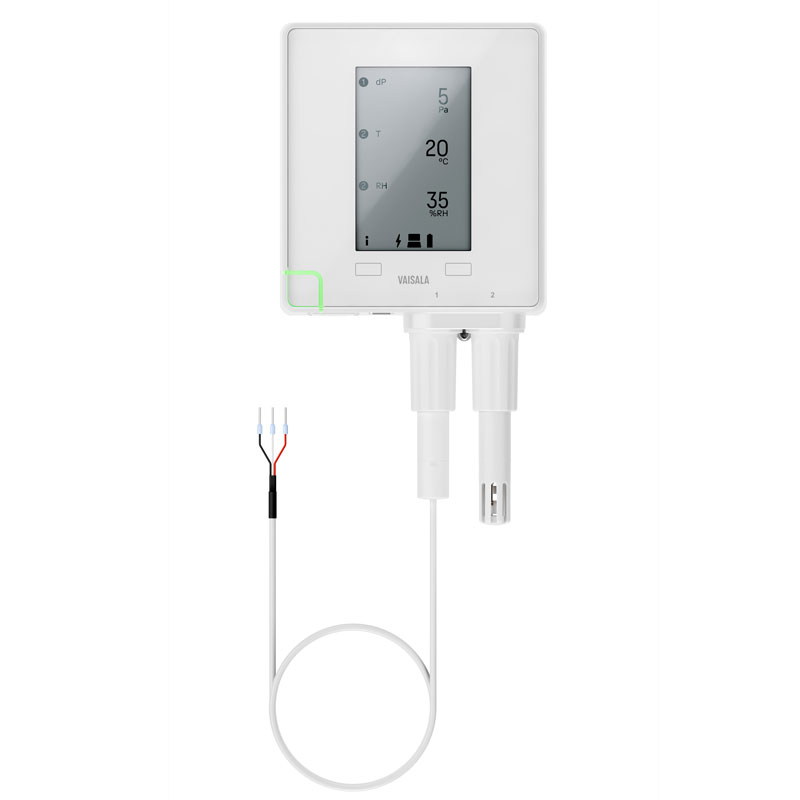

Vaisala ANP115 analogue input probes integrate with the Vaisala VDL200 PoE datalogger.  They allow any (Vaisala or third party) analogue output transmitter with a 4-20mA or 0-10V signal to connect to Vaisala Continuous Monitoring System.  This includes integration into Vaisala ViewLinc software – a GxP compliant system aimed at the pharmaceutical industry.   A common application is the introduction of differential pressure monitoring to the CMS system.  That could be room pressures or for HEPA filter condition, both staple measurements in any cleanroom.  Vaisala ANP115 can also be used to monitor door contacts, useful for catching problems before they start to affect room pressure stability.

Vaisala ANP115 Analogue Input Probe Specifications

• For indoor use with the VDL200 datalogger
• Suitable for operating environments -20…+60°C (open wires)

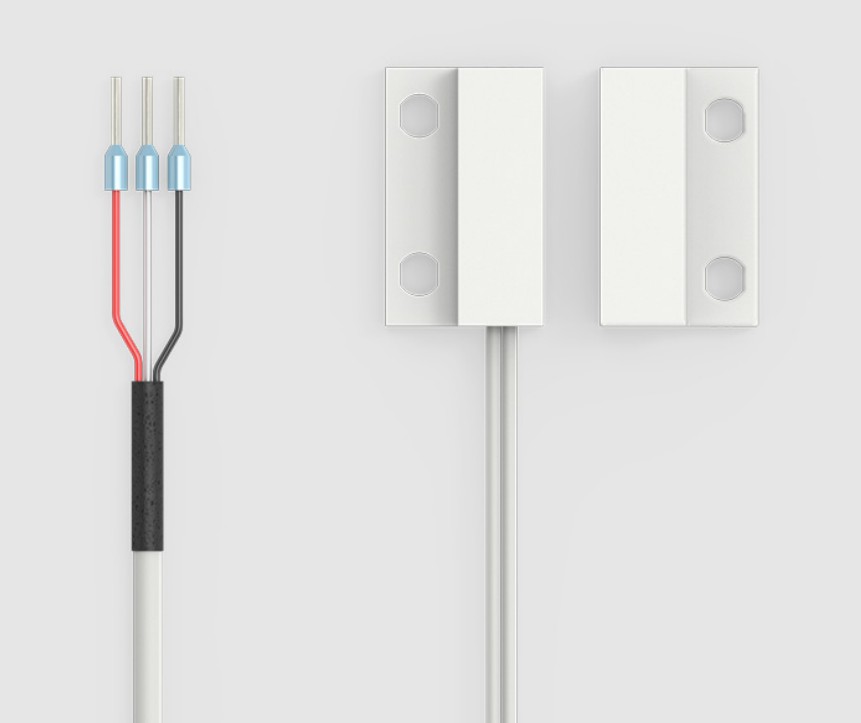

  • Down to -40ºC with door contact model (see photo)
• Powers directly from the VDL200 device
• Can be configured to provide operating power to the connected sensor
• Includes 2m cable for wiring (typically via JB)
• Door contact option can be configured NO or NC
• 4pin M8 probe connector to VDL200
• Polycarbonate, IP65 construction (Polyurethane cable jacket)

Fluidic are authorised Vaisala Partners, including CMS and Industrial Measurements divisions. Our instrumentation engineers are product trained and able to help with instrument selection.  We are able to offer supply, survey, install, validation and on-going service of the Vaisala CMS system. Please call your local UK office for more information (Glasgow 0141 641 5920, Warrington 01925 572401, London 01494 919209).
