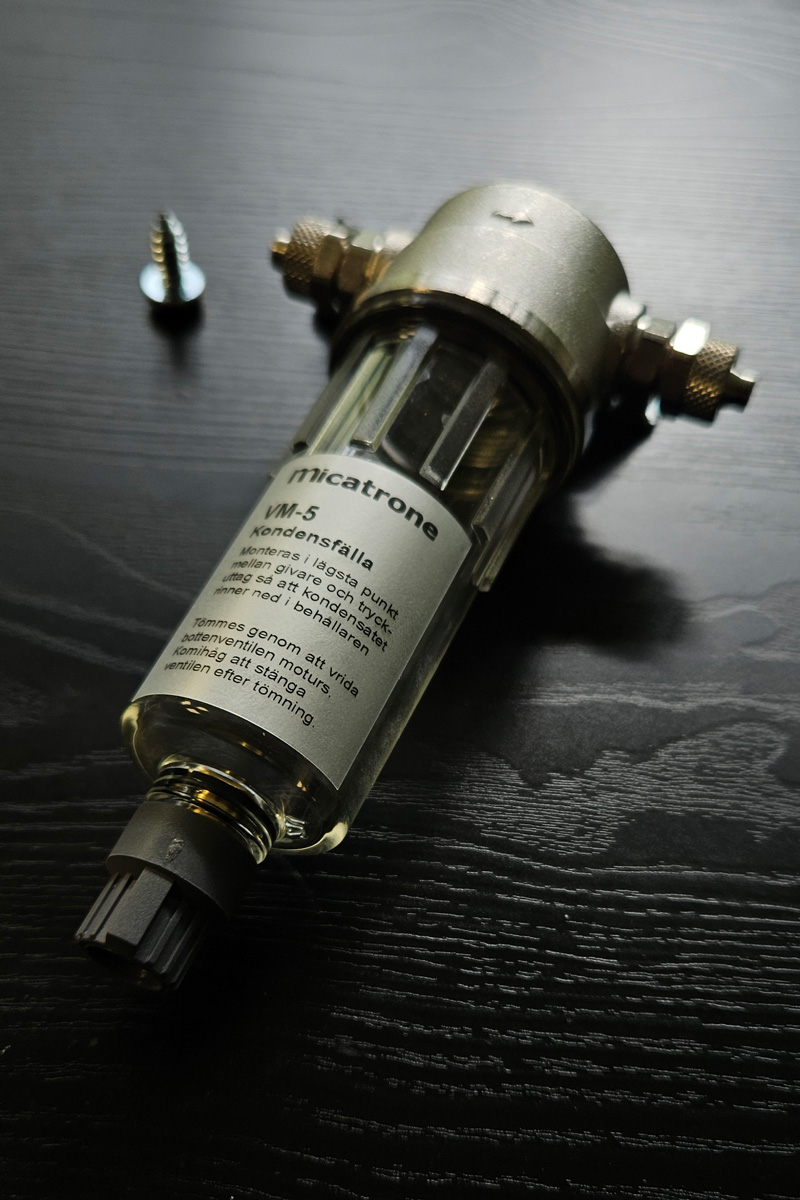

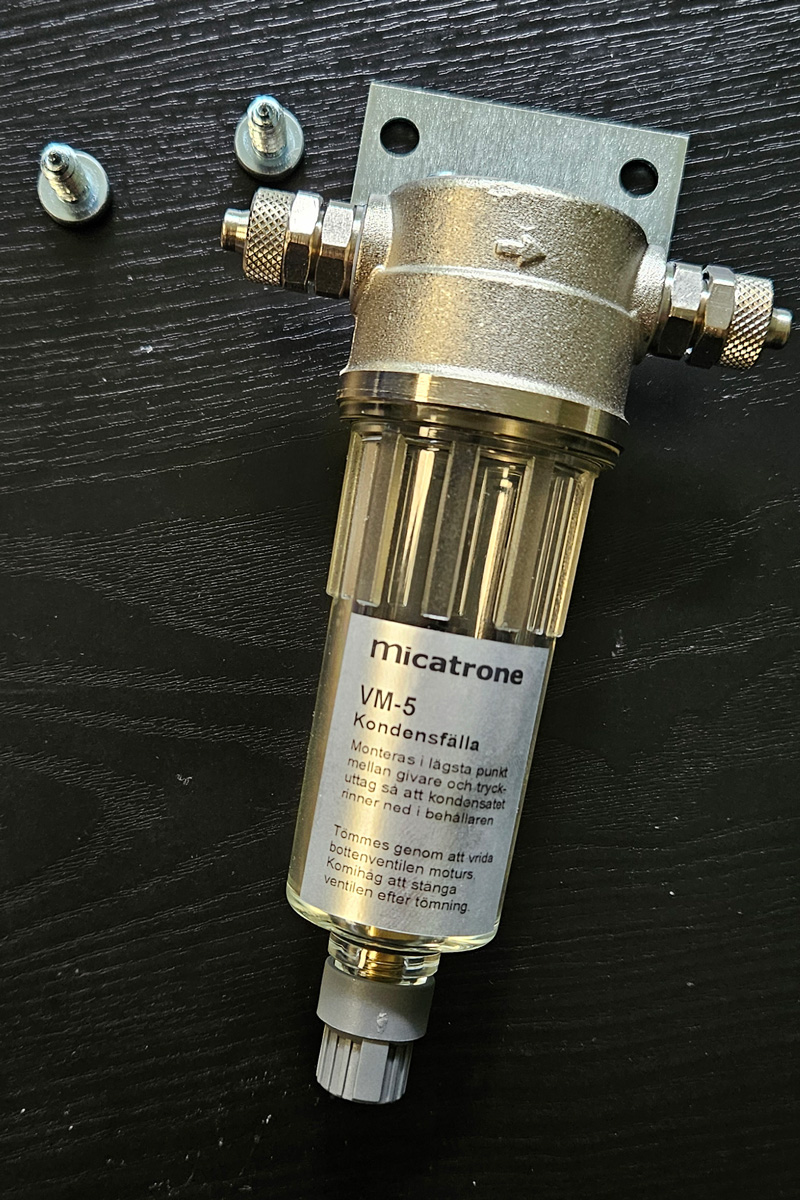

Micatrone VM-5 Moisture Trap

Used in conjunction with Micatrone differential pressure transmitters, Micatrone VM-5 is used to catch condensed water before it hits the (dry service only) transmitter. Condensation is common when the tube is passing different temperature zones. VM-5 is mounted at the lowest position of the pressure tube between the measuring outlet and transmitter or controller.



Micatrone VM-5 Specifications

  • Low cost, simple design to prolong life of the DP transmitter
  • Removable bowl to dispose of water collected in trap
    • Emptying the bowl is done with the bowl bottom valve knob which is turned a quarter of a turn anti-clock wise.
  • Complete with mounting bracket
  • Supplied with fittings for 8/6 semi-rigid tubing (also available from Fluidic)



Fluidic are the exclusive partner of Micatrone within the United Kingdom.  Our instrumentation engineers are product trained and are able to help with instrument selection within the full Micatrone instrumentation supply scope.  We commonly supply into the UK Nuclear industry and are signatories to the NDA supply chain charter.  Additionally we have several years experience in pharmaceutical, medical device and hospital instrumentation supply – all key industry applications for the Micatrone MF-PFA   Please call either office for more information (Glasgow 0141 641 5920,  Warrington 01925 572401).

Downloads

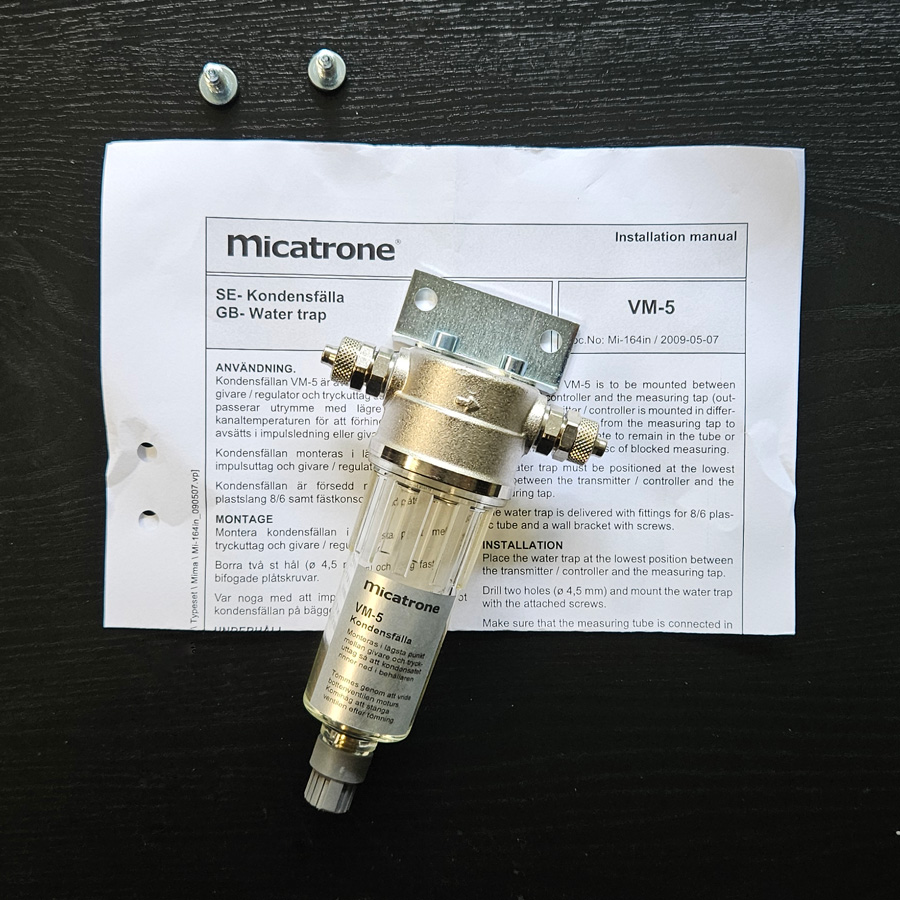

  • Download Micatrone VM-5 Condensate Trap installation guide
