Vaisala CAB100 Industrial Cabinets

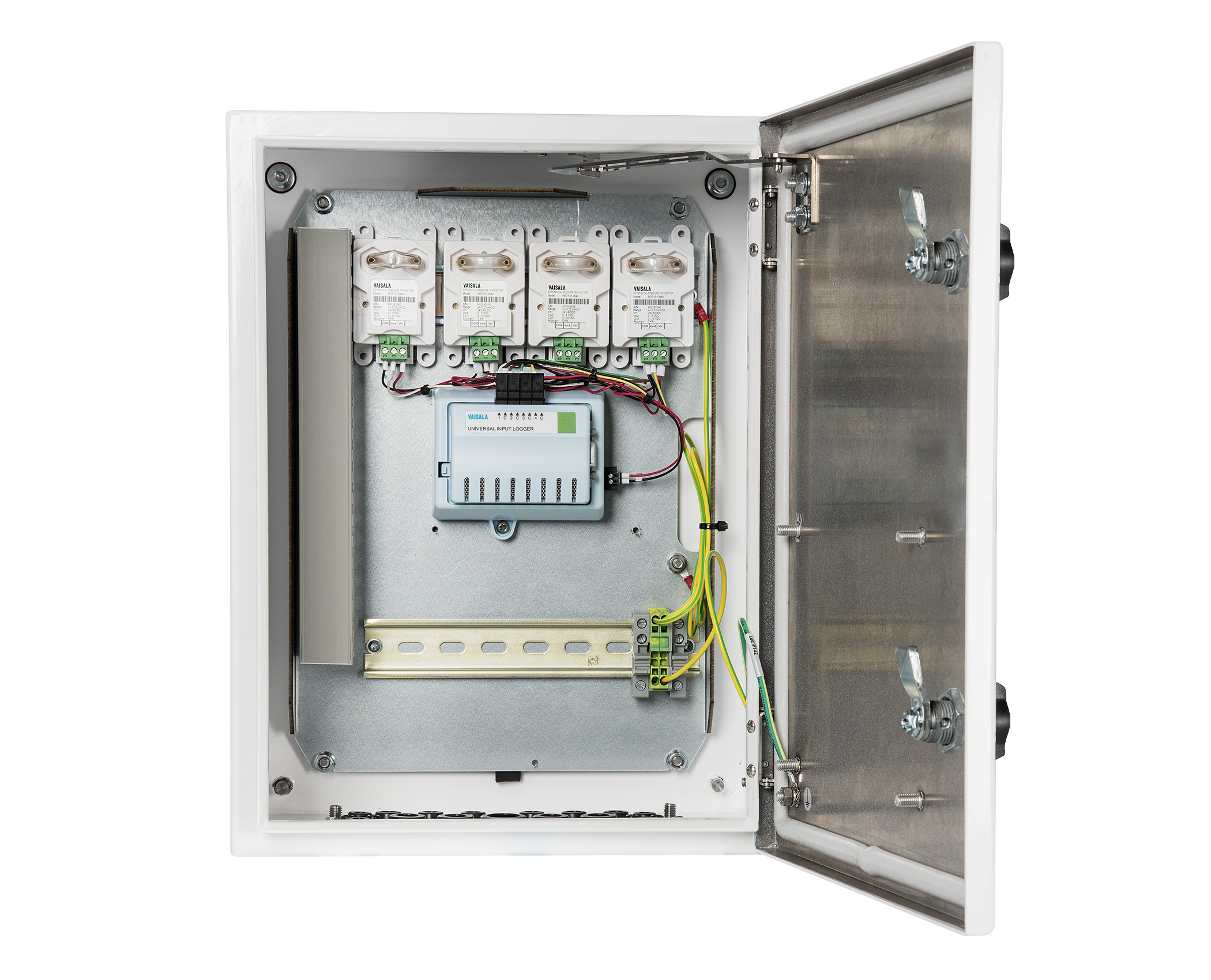

Vaisala CAB100 are a range of industrial cabinets that hook into Vaisala’s continuous monitoring system.  This includes ViewLinc for use in GxP compliant pharmaceutical systems.  These cabinets add differential pressure measurement to the full CMS system, a critical measurement for clean room pressure and HEPA filter condition.  Vaisala CAB100 are available in 2 sizes, within up to 12 differential pressure transmitters included per cabinet.  Signals are brought into the Vaisala CMS system via inbuilt DL4000 dataloggers.  On the smaller cabinet, 4 differential pressure sensors are all brought to the system via power-over-ethernet (PoE) allowing for a simple, clean and hassle free install.  Small cabinets with only 4 sensors measure approx 400 x 300 x 200 mm, the size of an A3 sheet of paper.  Cabinets can be specified up to IP66 for wash down clean room environments.

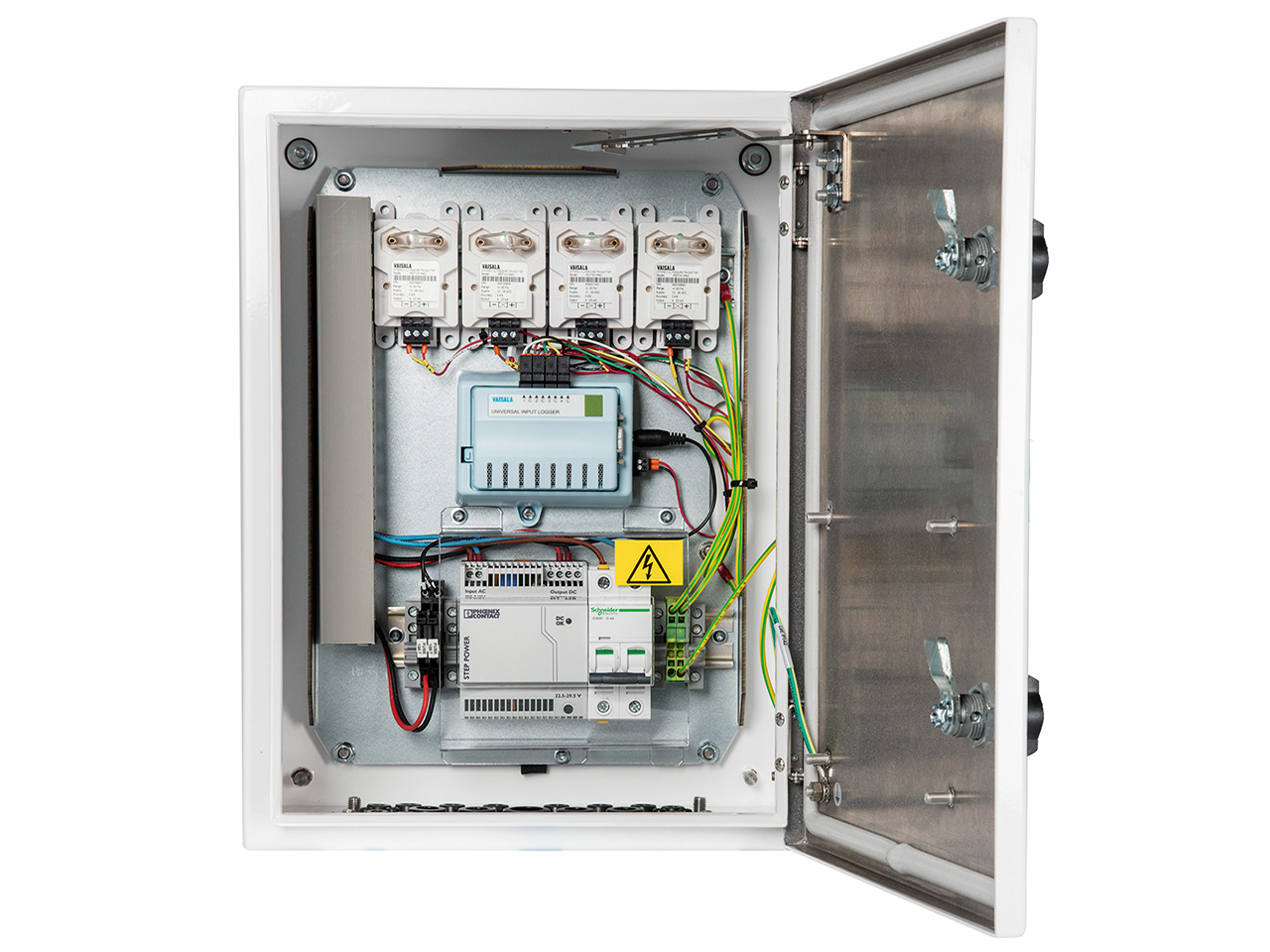

Vaisala CAB100A (small) specifications

• up to 4 differential pressure sensors
• up to 4 analogue channels
• Options for galvanic isolation/barriers
• Aluminium cabinet, painted white
• Dims: 400 x 300 x 200 mm
• 110-240Vac power or PoE option
• 20W consumption
• IP54 protection
• Ethernet network connection

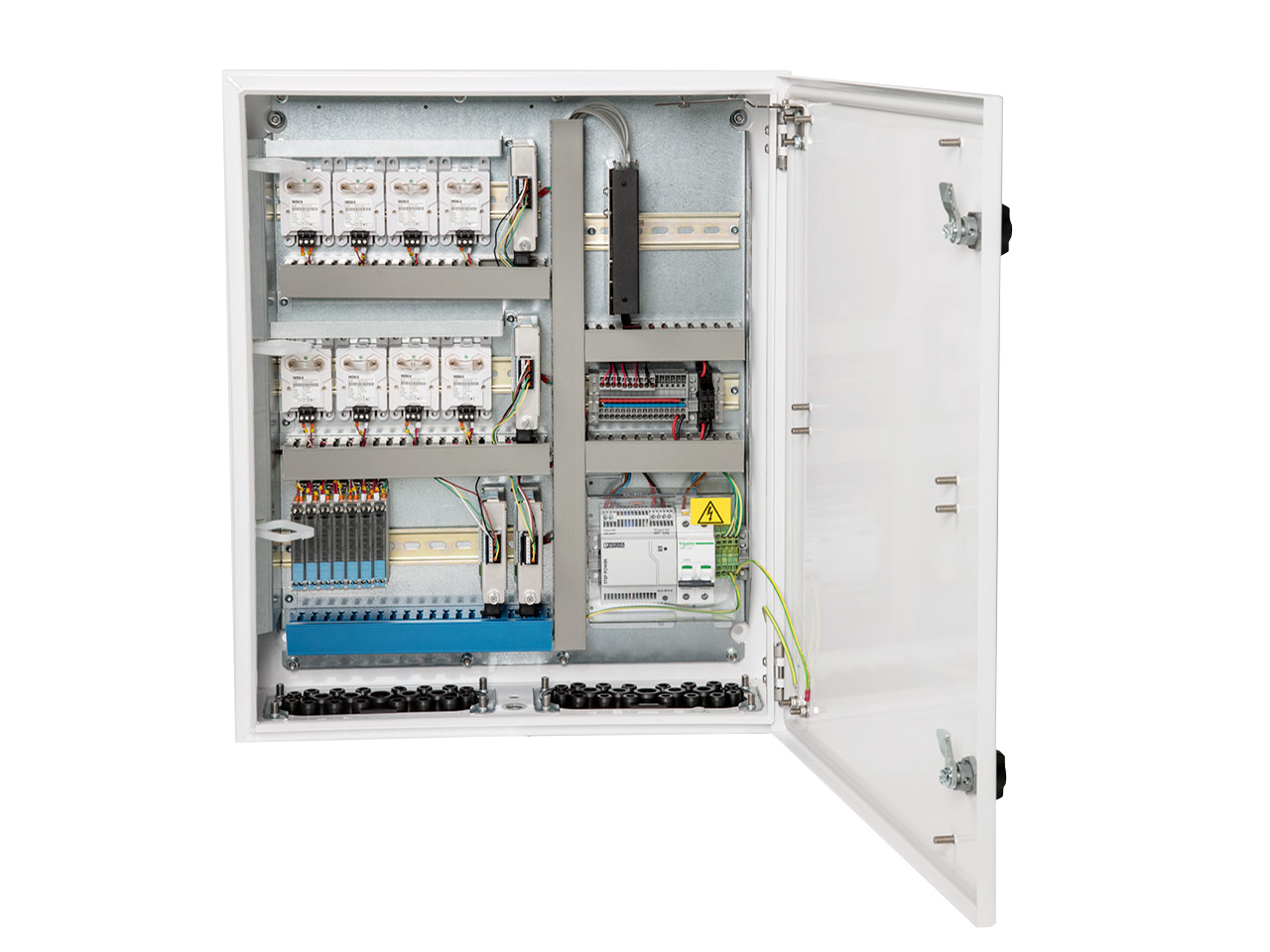

Vaisala CAB100B (large) specifications

• up to 12 differential pressure sensors
• up to 32 analogue channels
• Options for galvanic isolation/barriers
• Stainless steel cabinet, painted white
• Dims: 600 x 500 x 200 mm
• 110-240Vac power
• 40W consumption
• IP66 protection (wash down protection)
• Ethernet network connection

The above cabinets are factory standard designs.  Fluidic are also able to offer bespoke solutions and alternative sensor options.  Please call your local sales office for more information.

Fluidic are authorised Vaisala Partners, including CMS and Industrial Measurements divisions. Our instrumentation engineers are product trained and able to help with instrument selection.  We are able to offer supply, survey, install, validation and on-going service of the Vaisala CMS system. Please call your local UK office for more information (Glasgow 0141 641 5920, Warrington 01925 572401, London 01494 919209).
