Dwyer Magnehelic 605 Differential Pressure Indicating Transmitter

Dwyer 605 Magnehelic Differential Pressure Indicating Transmitter is an easy to read gauge to help read from any distance with a 4-20 mA transmitter output. This instrument provides for both visual monitoring and electronic control of very low differential pressure. Its durable and rugged housing paired with high quality components provides long service life.

This transmitter possesses a vertical diaphragm mounting orientation (other mounting orientations available upon request).  Additionally, it can be found in stainless steel bezel option for corrosion resistance applications. It can also be accompanied with our in-house green/red (go/no-go) zoning, these are ideal for monitoring of filter puncture and blocking.

Dwyer 605 Magnehelic® Differential Indicating Transmitter ranges available include… (custom ranges also available)

60-0-60, 100-0-100, 0…60, 0…125, 0…250, 0…500 (Pa)

0.05-0-0.02, 0…+/-2.5, 0…0.5, 0…1, 0…2, 0…3, 0…6, 0…6, 0…10, 0…20, 0…30, 0…50 (in w.c)

Fluidic offer multiple ‘Magnehelic Solution’ services, including green/red (go/no-go) overlay zoning, calibration and instrumentation assemblies.

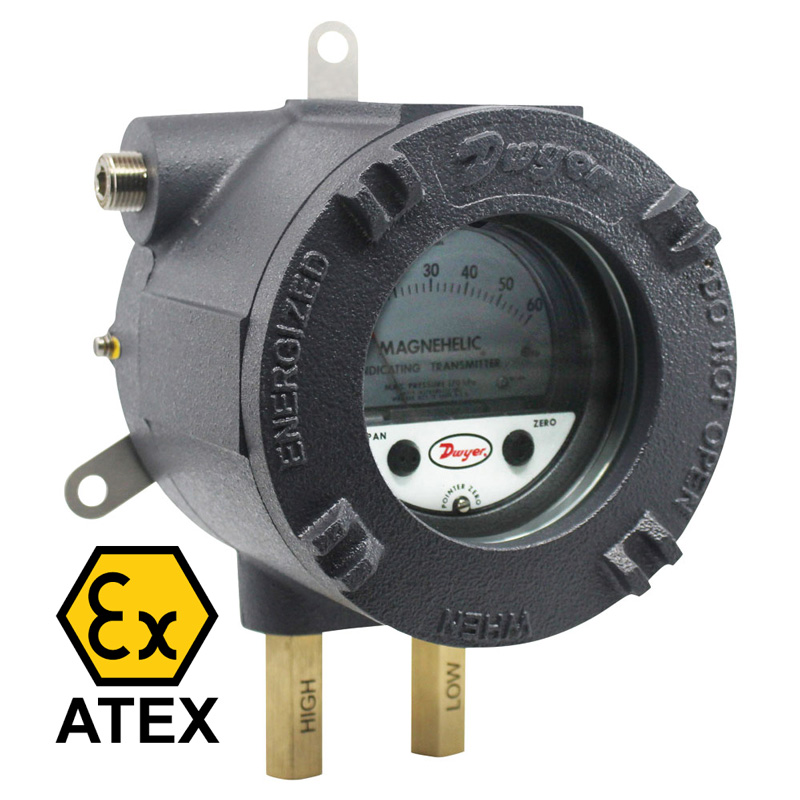

For applications in hazardeous areas see the Dwyer AT605 datasheet from the downloads below.  This includes a rugged and water-tight Exd enclosure for installations in ATEx compliant zones.

Fluidic are an authorised partner of Dwyer Instruments in the UK.  Our instrumentation engineers are product trained and are able to help with instrument selection within the full Dwyer Instrument supply scope.  Fluidic have supplied the Magnehelic® DP gauge for more than twenty years. We offer multiple “Magnehelic Solution” services and can supply with calibration certification where desired.   Please call any of our 3 UK offices for help with product selection or fill out a “contact us” form below.
